Product Description
1. DESCRIPTION:

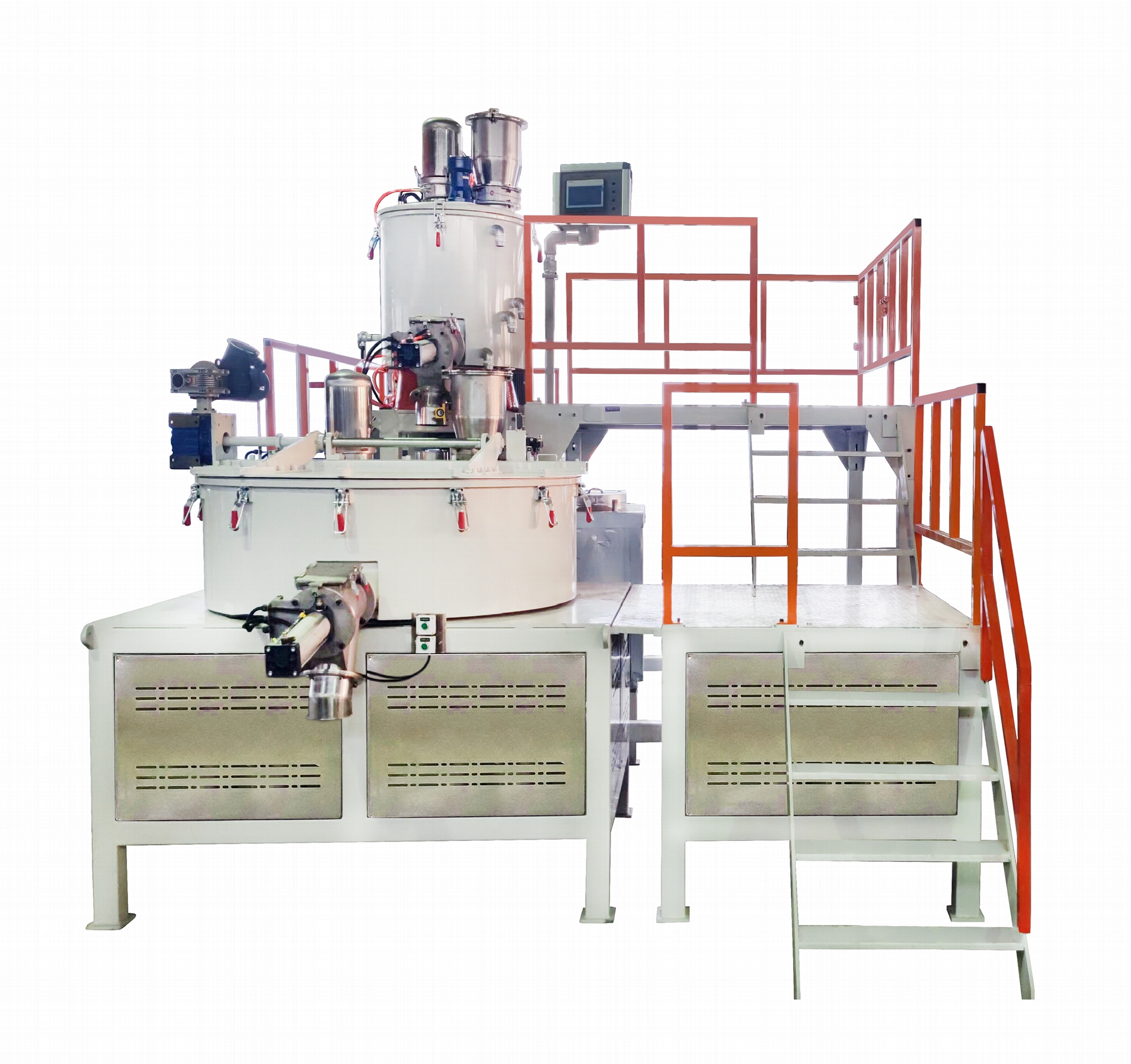

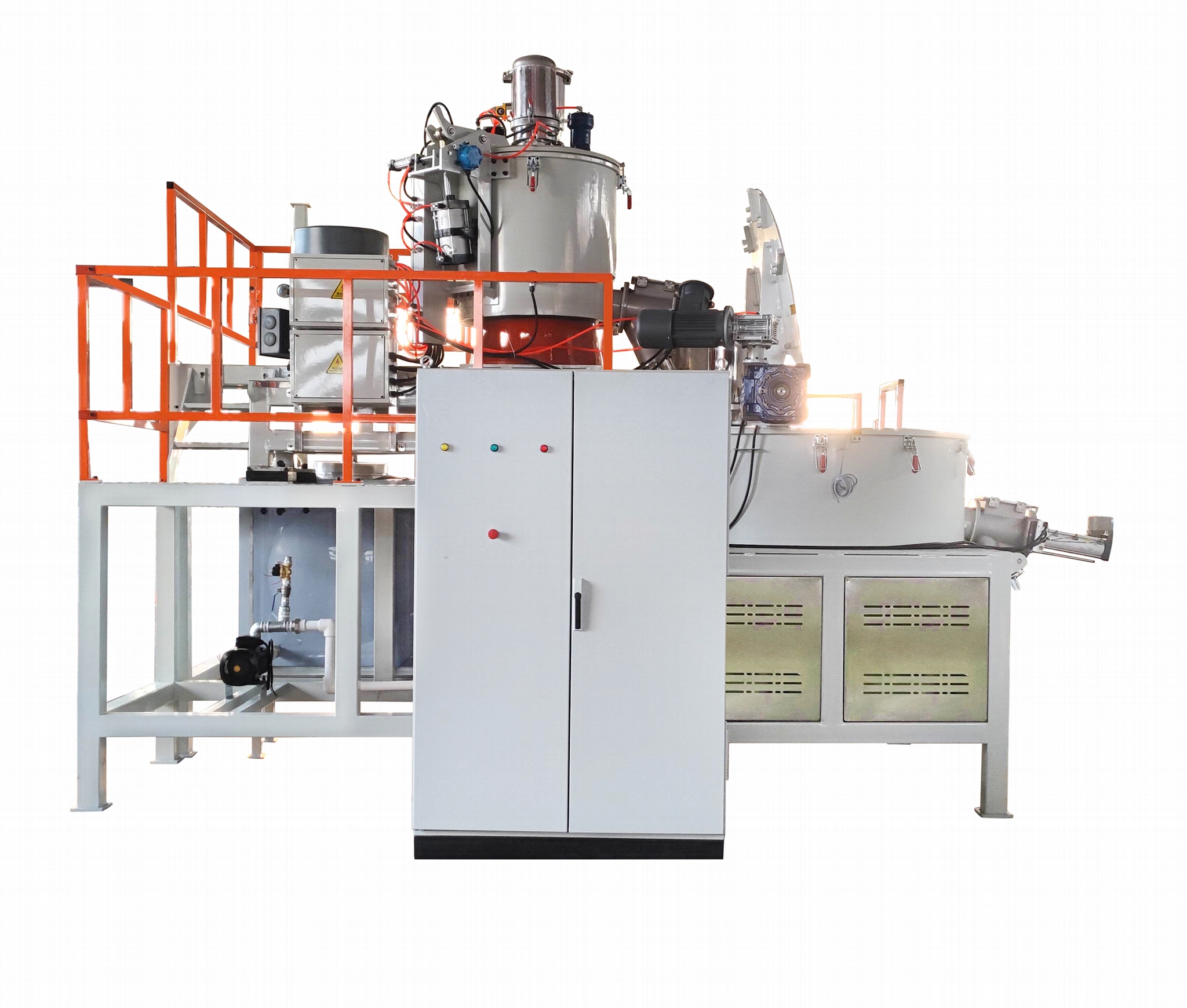

This metallic bonding mixer from Yantai Hongdong Powder machinery is a special equipment to bond the metallic pigment to the surface of powder coating granules to achieve metallic finish, it's able to automaticlly test the glass transition temperature, according to the change of material temperature and motor torsion, feeding the metallic powder and other mixturer at the best time.
2.WORKING PROCESS:
a. Reasonable design the bonding and cooling conatiner to avoid powder calking caused by local overheating.
b. The container adopts large arc design with good self-cleaning property. Equipped with baffle plate whose angle ahn height are adjustable it is beneficial to the stable heating of the powder coating during heating process.
c. Automatic control for bonding processs including filling notrogen, monitoring the content of oxygen, warming and temperature control, fitting with the metallic pigment, bonding, cooling in bonding container,discharge to cooling container, products discharging.
d. HMI control system for simple operation and parameter setting. high automation by PLC control.
e. Explosion protection system for mixing container.
3.ADVANCED TECHNOLOGY:
a) German technology
b) Equipped with nitrogen generator
c) Automatic transition of hot and chilled water
d) More accurate and uniform temperature control for material
f) Accurately capture the glass transition temperature of the material, to achieve best bonding effect
g) Control system design more humane (can be programmed at will, easy to operate)
h) One-touch bonding, high automation
i) Easy to clean and color changing
j) Special treatment on container wall, no powder adhesive during the bonding process
k) Anti-explosion motor, high safety
l) Water treating on blade of the shaft, more stable temperature on material
m) Four-layers design on the blade, to avoid the powder floating.
4.MAIN TECHNICAL PARAMETER:
| Model |
MB10 |
MB40 |
MB200 |
MB300 |
MB500 |
| Volume |
10L |
40L |
200L |
300L |
500L |
| Ooutput(kg) |
5 |
15-20 |
60-80 |
100-150 |
150-200 |
| Motor(kw) |
5.5 |
15 |
45 |
55 |
75 |
| Cooling medium |
Chilled water |
| Atmosphere |
Inert Gas N2 |
| Discharge type |
Pneumatic discharge |
| Powder supply |
3 phases 4 wire A/C powder |
